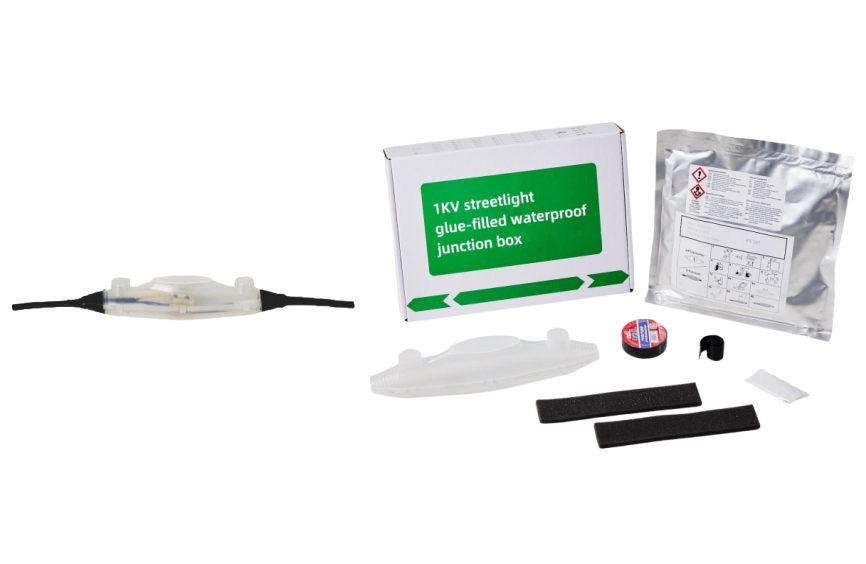

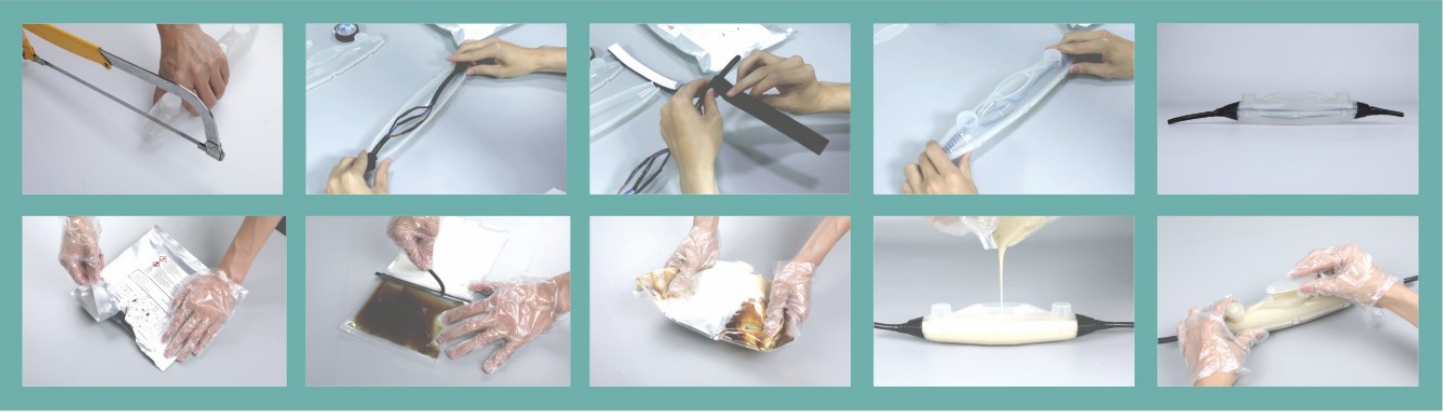

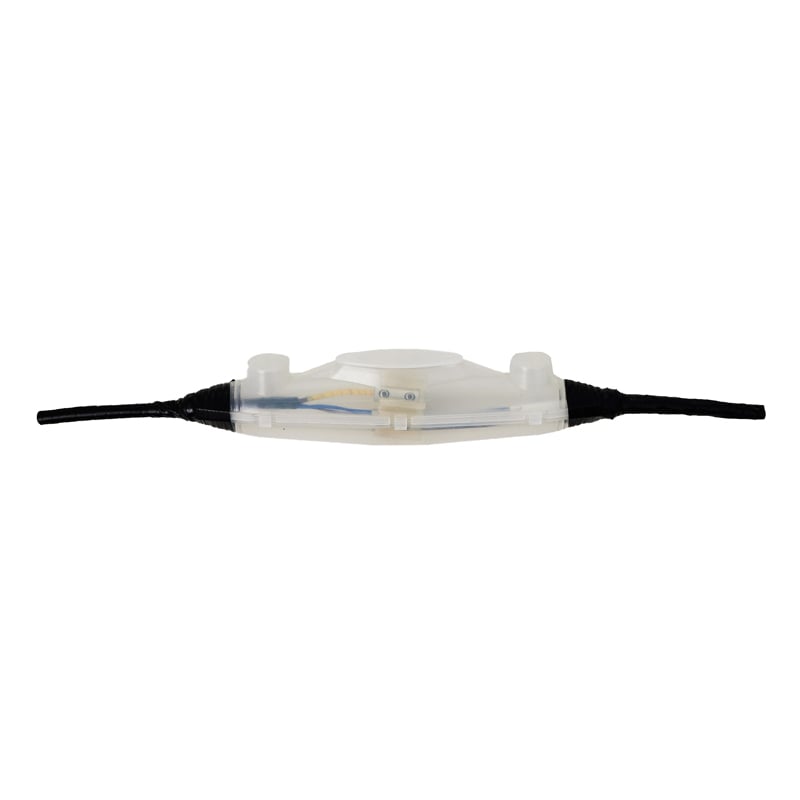

Glue-filled waterproof junction box: It consists of shell, sealant and accessories. When it is used, mix the sealant (tan curing agent and resin)sufficiently and inject it into the inner cavity of the shell fromthe glue injection port, and wait for it to fully cure.
This product has excellent dustproof, waterproof and insulating properties.
| Base material | Two-component polyurethane rigid foam | |
| Color | Resin | Curing agent |
| Light yellow | Tan | |
| Hardness | 75A±5 | |
| Gel time | 43'/5℃ 15'/23℃ 8'/40℃ | |
| Volume resistivity rate | >1x10''Ωcm | |
| Breakdown strength | >15 kV/mm | |
| Elongation at break | >35% | |
| Storage temperature | +5℃-35℃ | |
| Quality guarantee period | 24 months | |

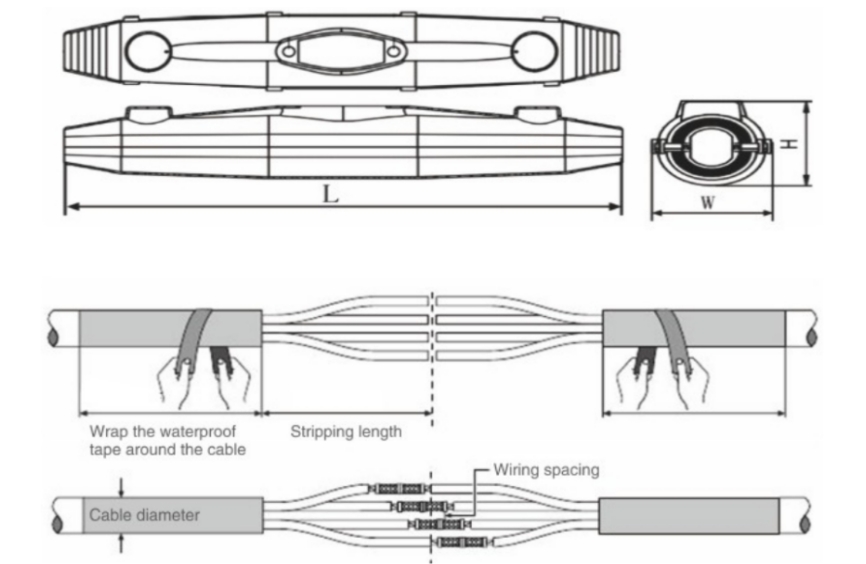

| Product Model | Overall Dimension | Scope of Application |
| DS-JXHZT-1 | 150*35*31 | Suitable for cable outer diamenterФ1~17mm |
| DS-JXHZT-2 | 185*40*45 | Suitable for cable outer diamenterФ8-26mm |
| DS-JXHZT-3 | 270*55*55 | Suitable for cable outer diamenterФ 14-32mm |
| DS-JXHZT-4 | 355*65*60 | Suitable for cable outer diamenterФ23~39mm |
| DS-JXHZT-5 | 400*90*75 | Suitable for cable outer diamenterФ28-50mm |
| DS-JXHZT-6 | 515*120*125 | Suitable for cable outer diamenterФ35-65mm |
| DS-JXHZT-7 | 700*160*180 | Suitable for cable outer diamenterФ48-80mm |
