Oil-immersed transformer

Product Description

Introducing our top-quality, durable Oil-Immersed Transformer, designed for optimal performance in the Power Equipment and Cable Accessories Manufacturing Industry. With exceptional features, functions and advantages such as superior performance, reliability, and efficiency, this transformer guarantees stable power distribution and optimized cable transmission. It is suitable for a wide range of applications, accommodating diverse power needs. Our Oil-Immersed Transformer is the perfect choice for discerning users seeking top-notch performance, ease of use, and long-lasting returns on investment. Get yours today and experience the best that power technology has to offer.

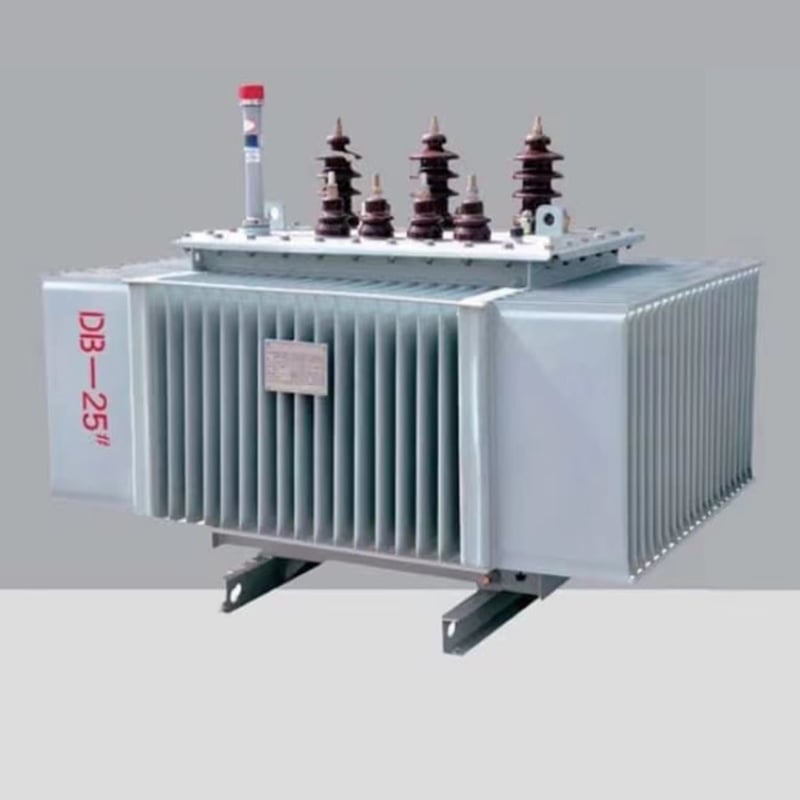

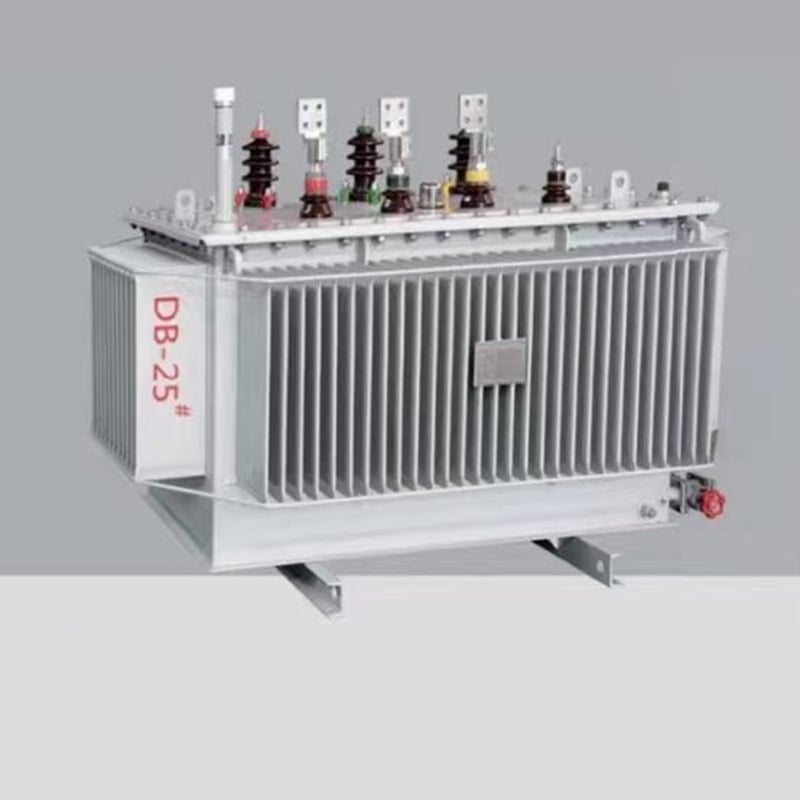

S13 10kv Oil Immersed Distribution Transformer

Product Features

Fully sealed distribution transformer, suitable for 10KV/0.4KV,50Hz power distribution system, widely used in all kinds of residential, commercial buildings, public facilities, industrial and mining enterprises,power generation enterprises and urban and rural power grids. The product conforms to GB1094 "Power transformer standard".

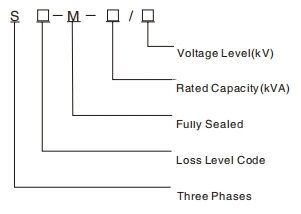

Production type

Executive standard

• GB 1094 Power transformer
• GB/T15164 Oil-immersed Power Transformer Load Guidelines
• GB/T6451 Three-phase oil-filled power transformer technical
• parameters and requirements
• GB/T6451 transformer oil
• GB311.1 Insulation coordination of high voltage power trans
• mission and transformation equipment
• JB/T501 Power Transformer Test Guidelines
• GB10237 Power transformer insulation level and insulation
• test external insulation air gap
• DL/T572 Transformer operation regulation

Technical parameter

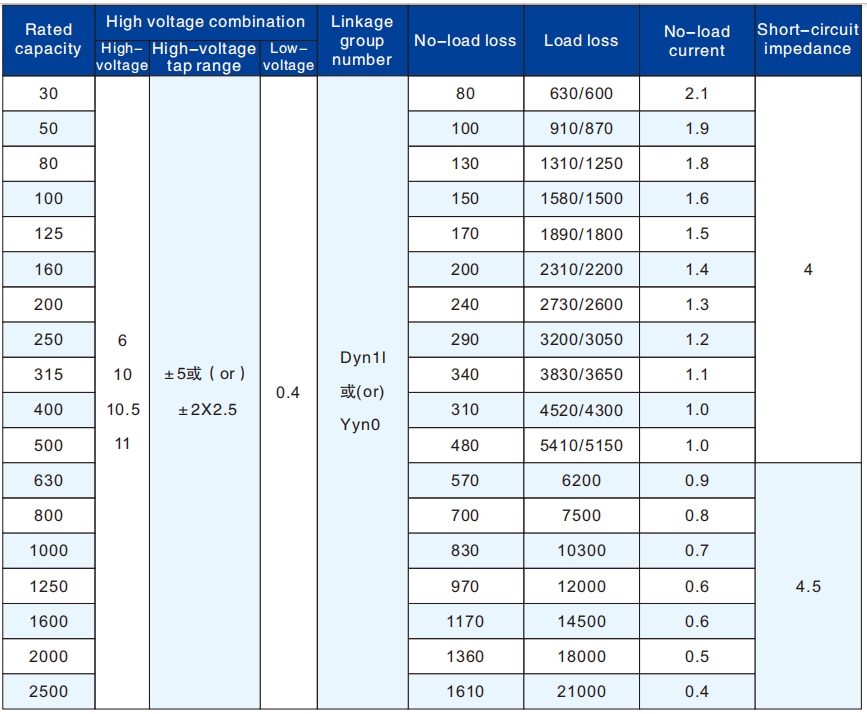

S13-M type 10kV echnical data of three-phase fully sealed distribution transformer without excitation regulation

Notes:

• For transformers with rated capacity of 500KVA and below, the load loss above the diagonal line in the table applies to Dyn11 linkage group, and the load loss value below the diagonal line applies to Yyn0 linkage group.
• Customized products are available according to customers' needs.

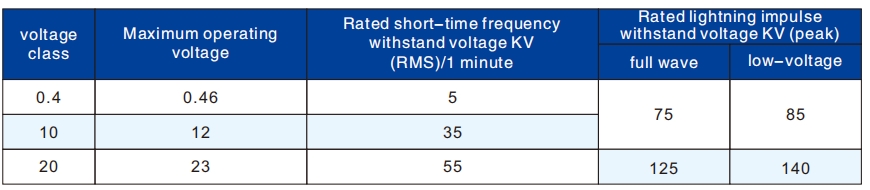

Insulation level

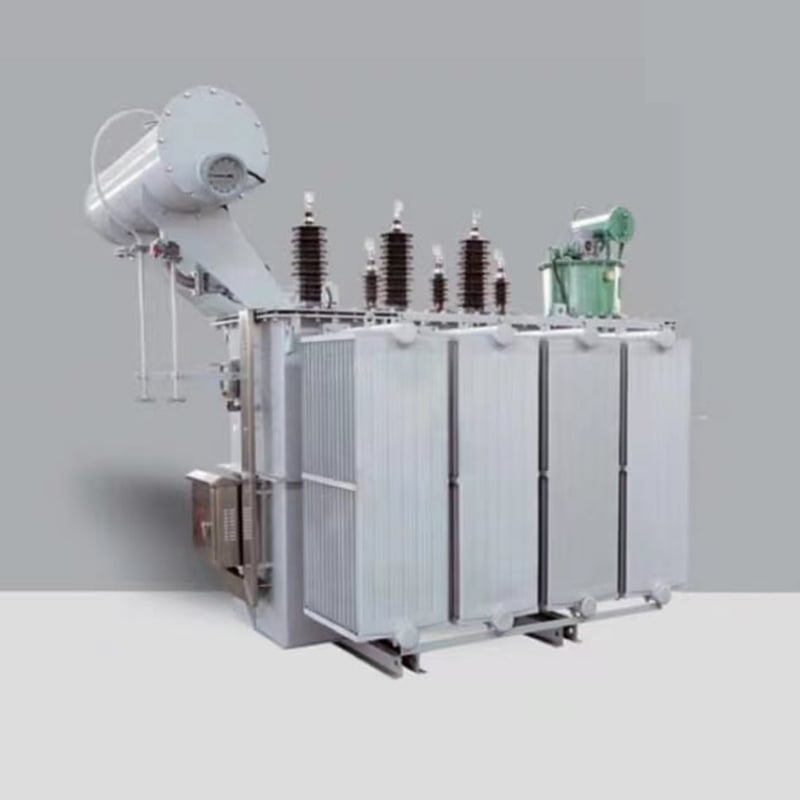

35kV Oil Immersed Power Transformer

Product Features

The 35kV(loaded) power transformer produced by our company is a new product that absorbs advanced technology at home and abroad and is developed for the transformation of China's urban and rural power grid. Its product performance is better than GB/6451-2008 "Technical Parameters and Requirements of oil-immersed power transformer". Fully in line with GB1094 " power transformer" standard and the International Electrotechnical Commission recommended standard IEC60076, the product has the characteristics of low loss, low noise, no hanging core, its safety, reliability, economy and other aspects have been greatly improved.This series of power transformers is suitable for 35kV, 50Hz transmission and transformation system, in the city network transformation,industrial and mining enterprises and 35kV substation as the main transformer, can be used in the case of load, to achieve remote voltage regulation of the transformer. The product technical performance index has reached the domestic leading level.

Production type

Technical parameter

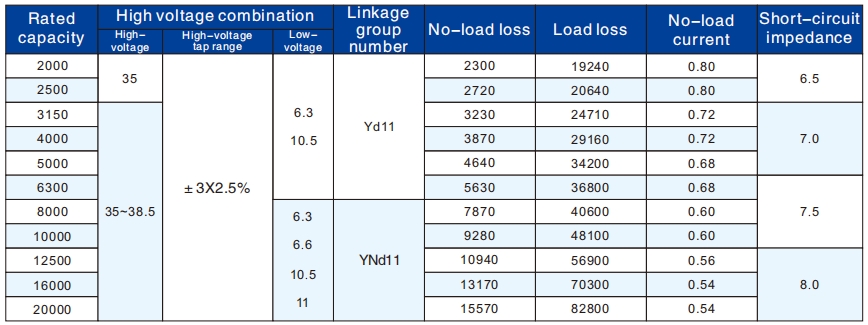

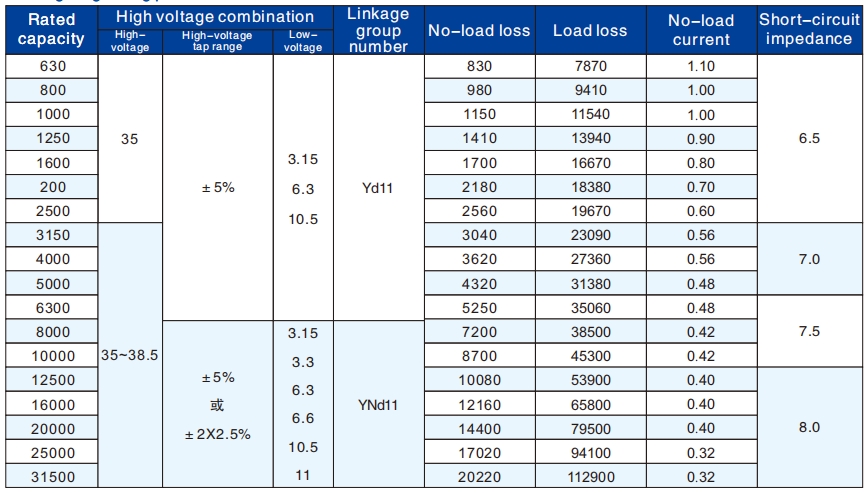

800kVA~31500kVA main technical parameters of three-phase double-winding unexcited voltage regulating power transformer.

Note

• Transformers with a rated capacity of 6300kVA and below are available in a high pressure tap range of ± 2X2.5%.
• Transformers with lower than low voltage voltages of 10.5kV and 11KV are available with connection group label Dyn11.
• For transformers with a rated capacity of 3150kVA and above, the -5% tap position is the maximum current tap position.

2000kVA—2000kVA main technical parameters of three-phase double-winding on-load voltage regulating power transformer.

Note

• For low voltage transformers of 10.5kV and 11kV, products with connection group label Dyn11 are available.
• The maximum current tap is -7.5% tap position.

Oil Immersed Amorphous Alloy Distribution Transformer

Product Features

Amorphous alloy is a new type of magnetic conductive material, mainly composed of iron,silicon, boron metal elements, the use of rapid freezing and solidification production process,amorphous alloy materials, the metal atom arrangement of the amorphous alloy materials in a disorderly amorphous state. With good ferromagnetism, high mechanical properties, good corrosion resistance, simple production process, high rate of material. Amorphous alloy in the physical properties, chemical properties and mechanical properties in the crystalline state He Jing are significantly different. Amorphous alloy processed transformer core and traditional silicon steel core, compared with more conducive to be magnetised and demagnetised and other characteristics, no-load loss reduced by 80%.

Scope of application

Amorphous alloy transformer has significant environmental protection and energy saving advantages, in line with the development trend of energy saving requirements,the promotion and application of this product will bring very good economic and social benefits,and the market prospect is broad.The products will be widely used in all kinds of residential buildings,commercial buildings,public facilities,miners,power generation enterprises and urban and rural power grids.

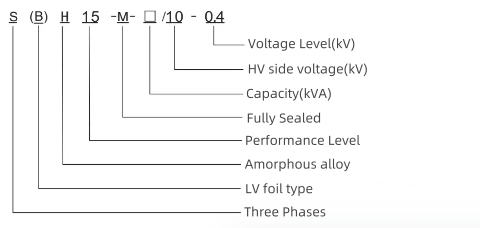

Production type

Technical parameter

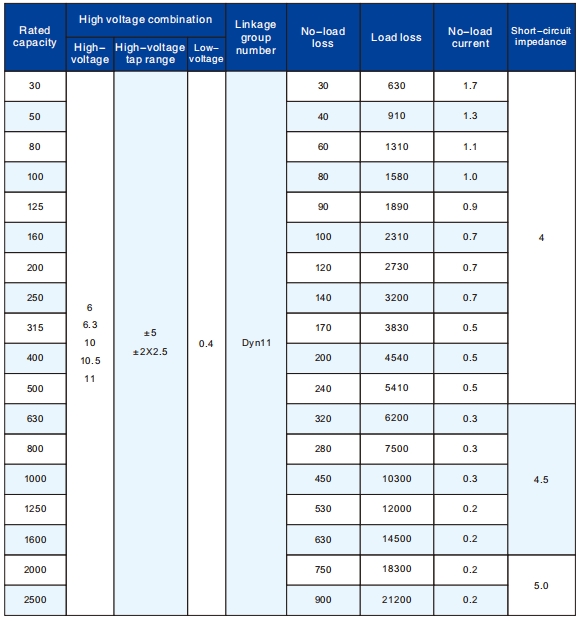

S(B) H15-M three-phase fully sealed non-exciting voltage regulation distribution transformer technical parameters
