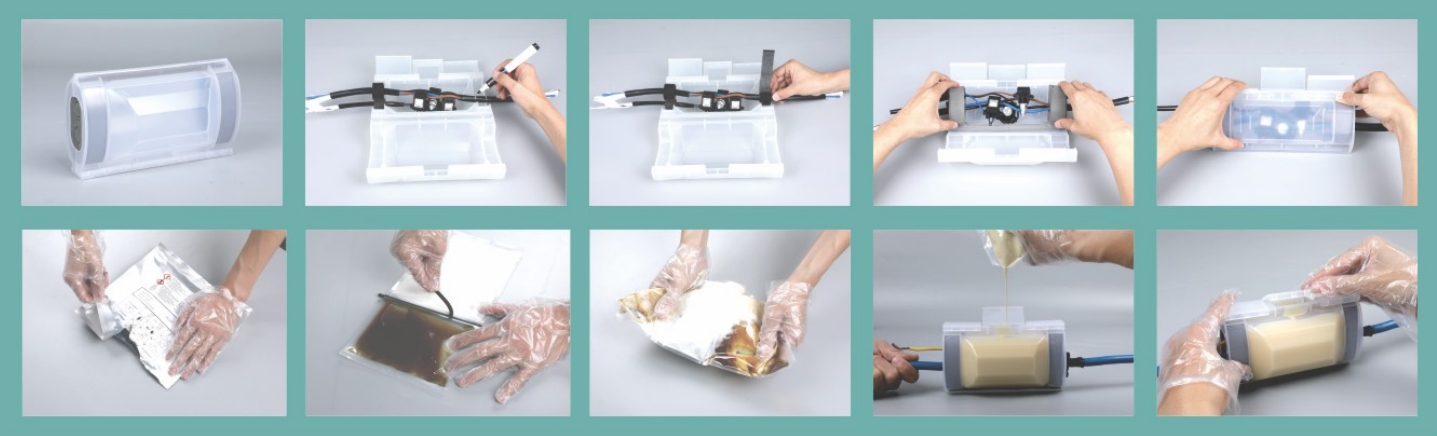

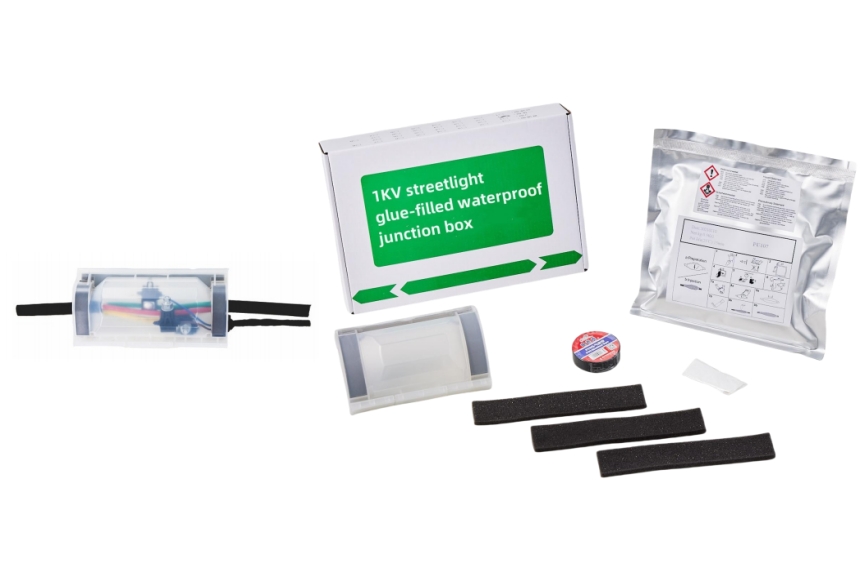

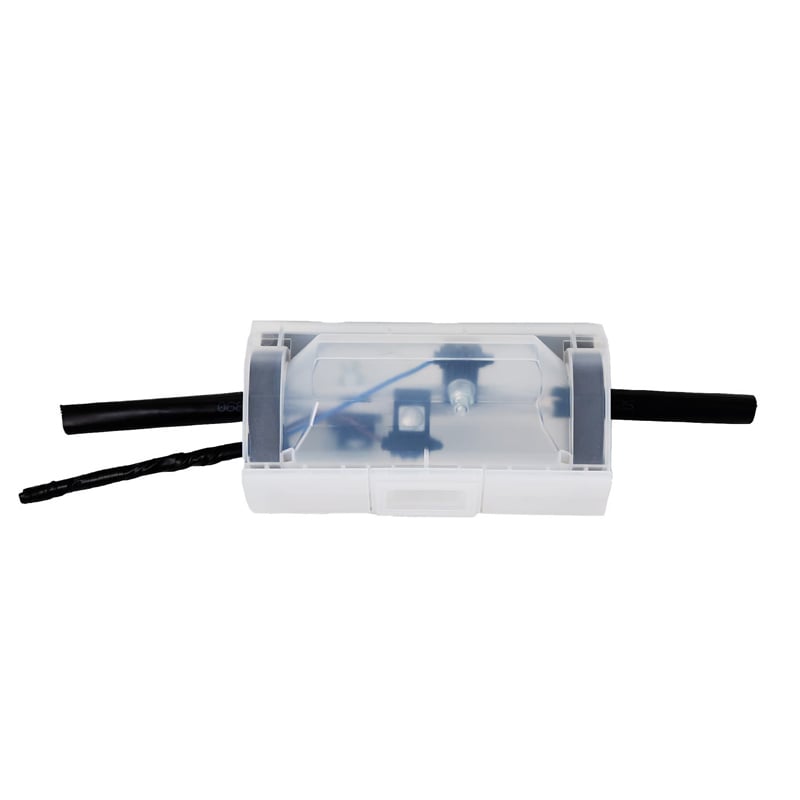

Glue-filled waterproof junction box: lt consists of shell, sealant and accessories. When it is used, mix the sealant (tan curing agent and resin) sufficiently and inject it into the inner cavity of the shell from the glue injection port, and wait for it to fully cure.
This product has excellent dustproof, waterproof and insulating properties.
| Base material | Two-component polyurethane | |
| Color | Resin | Curing agent |
| Light yellow | Tan | |
| Hardness | 75A±5 | |
| Gel time | 43'/5℃ 15'/23℃ 8'/40℃ | |
| Volume resistivity rate | >1x10''Ωcm | |
| Breakdown strength | >15 kV/mm | |
| Elongation at break | >35% | |
| Storage temperature | +5℃-35℃ | |
| Quality guarantee period | 24 months | |

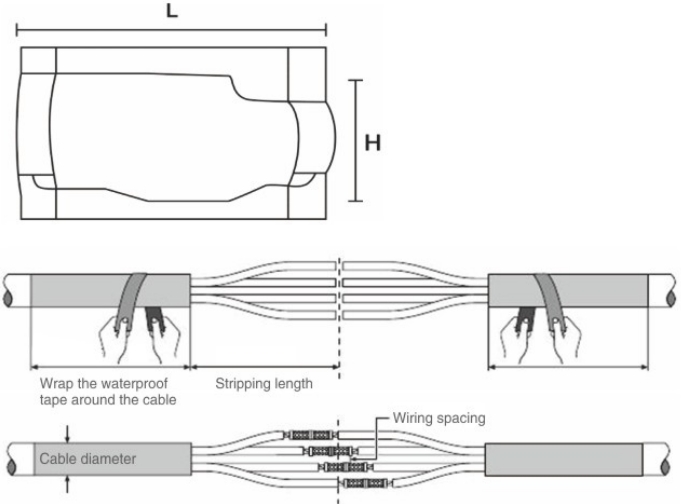

Unit:mm
| Product Model | Overall Dimension | Suitable for cable out diameter Ømm | |
| Main Thread | Bifurcation Line | ||
| DS-JXHZT-1 | 155*95*80 | ≤26 | ≤16 |
| DS-JXHZT-2 | 230*110*85 | ≤40 | ≤20 |
| DS-JXHZT-3 | 260*125*100 | ≤45 | ≤30 |
| DS-JXHZT-4 | 295*175*130 | ≤55 | ≤36 |
