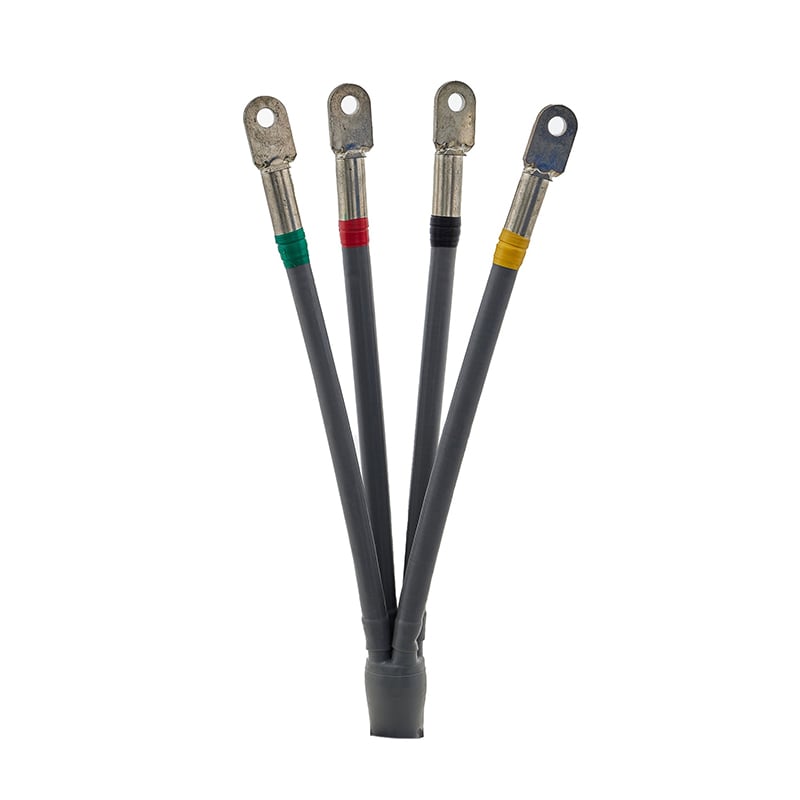

0.6/1kV 4 cores cold shrinkable  termination

Scope of application:

Apply to extruded insulated power cable with U₀≤1.8kV (without insulation shield layer)

• Single-core,two-core,three-core,four-core, five-core cables
• Copper or aluminum conductor
• No insulation shield layer, no metal tape shield or metal wire shield
• Armoured or unarmoured
• Metal tape armoured or metal wire armoured

Application:

Terminal: lt is installed at the end of the running cable, connected to power supply devices such as overhead cables and load switch or busbar.Straight-through joint: lt is installed in the middle of the running cable,used to connect two sections of cable lines.

Technical Parameters

Conform to and pass JB/T7829-2006 rated voltage 1kV (Um=1.2kV) to 35kV (Um=40.5kV) power cable heat shrink termination and JB/T7830-2006 rated voltage 1kV (Um=1.2kV) to 10kV (Um=12kV) extruded insulated power cable heat shrink straight-through joint.

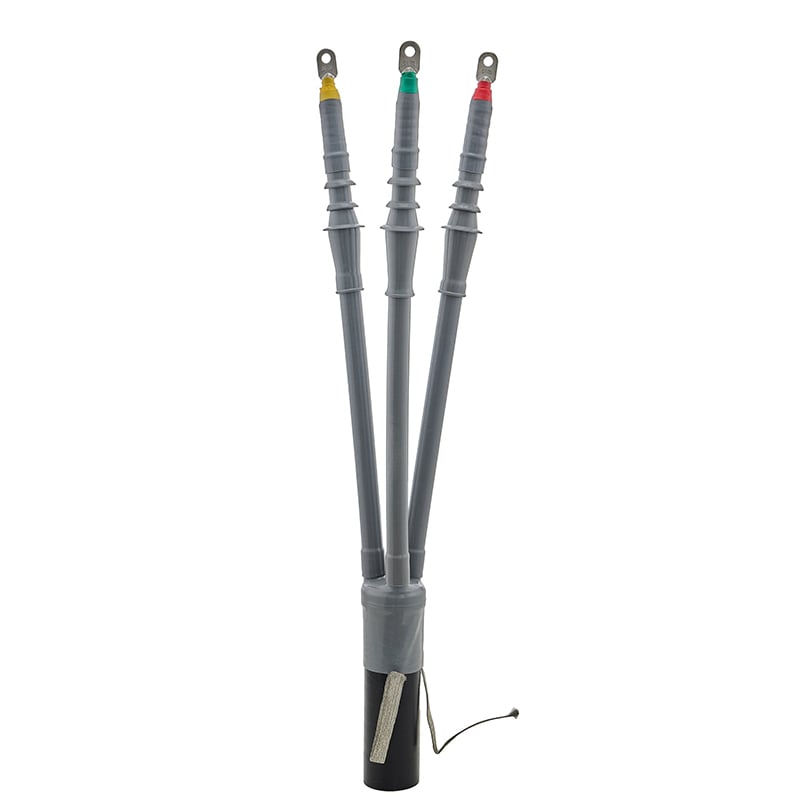

8.7/10kV 3 cores cold shrinkable indoor termination

Scope of application:

Apply to extruded insulated power cable with U₀≦8.7kV

• Single-core, three-core cables
• Copper or aluminum conductor
• Extruded semi-conductive shield layer or semi-conductive tape shield
• Metal tape shield or metal wire shield
• Armoured or unarmoured
• Metal tape armoured or metal wire armoured

Application:

• Indoor termination: lt is installed at the end of the cable running in the indoor environment(not exposed to wind,frost, rain,snow and sunlight),connected to power supply devices such as switchgear and transformer or busbar.
• Outdoor termination: It is installed at the end of the cable running in the outdoor environment (can withstand wind, frost, rain, snow and sunlight),connected to power supply devices such as overhead cable, busbar, transformer and fuse or overhead cable.
• Straight-through joint: lt is installed in the middle of a running cable, used to connect two sections of cable lines.

Technical Parameters

Conform to and pass GB/T12706.4-2020 rated voltage 1kV (Um=1.2kV) to 35kV (Um=40.5kV) extruded insulated power cable and accessories part four: rated voltage 6kV (Um=7.2kV) to 35kV (Um=40.5kV) power cable accessories testing requirements and lEC60502-4:2005 rated voltage 1kV (Um=1.2kV) to 35kV (Um=40.5kV) extruded insulated power cable and accessories part four: rated voltage 6kV (Um=7.2kV) to 30kV (Um=36kV) power cable accessories testing requirements.

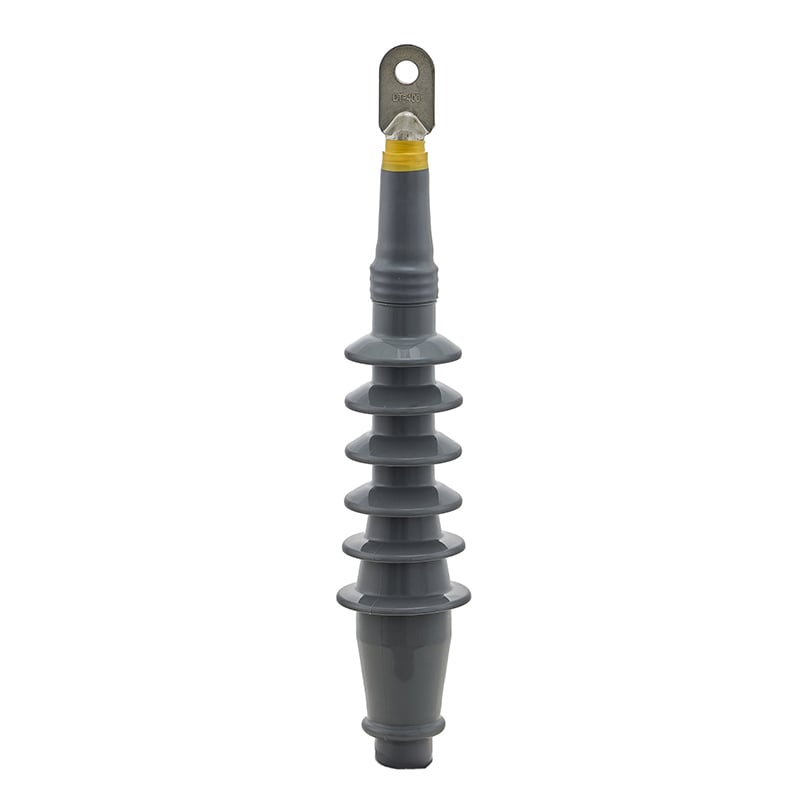

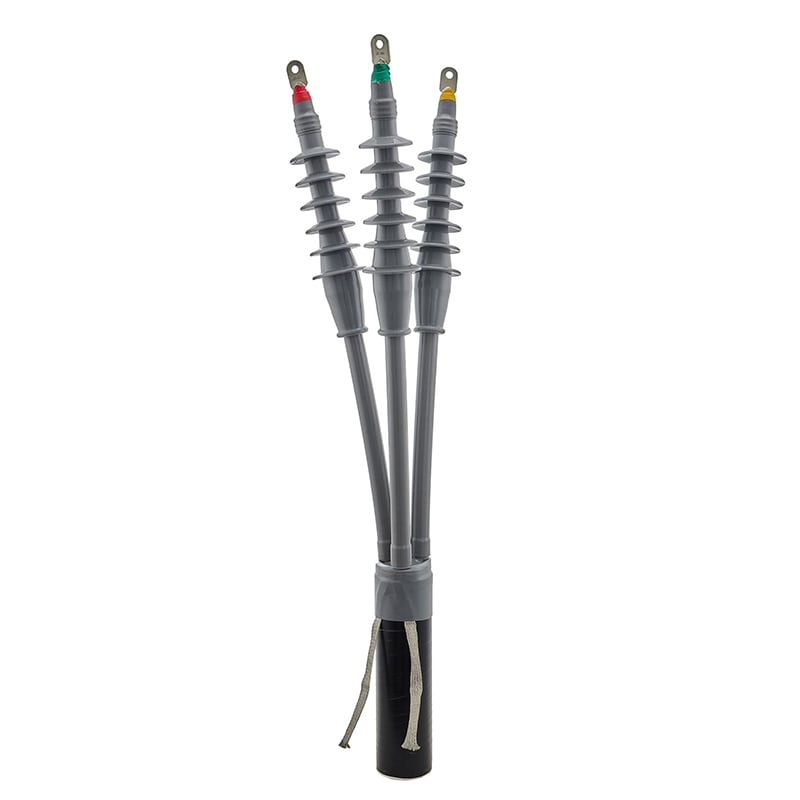

26/35kV 1 core cold shrinkable indoor termination & 26/35kV 3 cores cold shrinkable indoor termination

Scope of application:

Apply to extruded insulated power cable with U₀≦27.5kV

• Single-core, three-core cables
• Copper or aluminum conductor
• Extruded semi-conductive shield layer or semi-conductive tape shield
• Metal tape shield or metal wire shield
• Armoured or unarmoured
• Metal tape armoured or metal wire armoured

Application:

• Indoor termination: lt is installed at the end of the cable running in the indoor environment(not exposed to wind,frost,rain,snow and sunlight)connected to power supply devices such as switchgear and transformer or busbar.
• Outdoor terminal: lt is installed at the end of the cable running in the outdoor environment (can withstand wind, frost, rain, snow and sunlight),connected to power supply devices such as overhead cable, busbar, transformer and fuse or overhead cable.
• Straight-through joint: lt is installed in the middle of a running cable, used to connect two sections of cable lines.

Technical Parameters

Conform to and pass GB/T12706.4-2020 rated voltage 1kV (Um=1.2kV) to 35kV (Um=40.5kV) extruded insulated power cable and accessories part four: rated voltage 6kV (Um=7.2kV) to 35kV (Um=40.5kV) power cable accessories testing requirements and GB/T28427-2012 electrified railway 27.5kV single-phase cross-linked polyethylene insulated cable and accessories 1.
