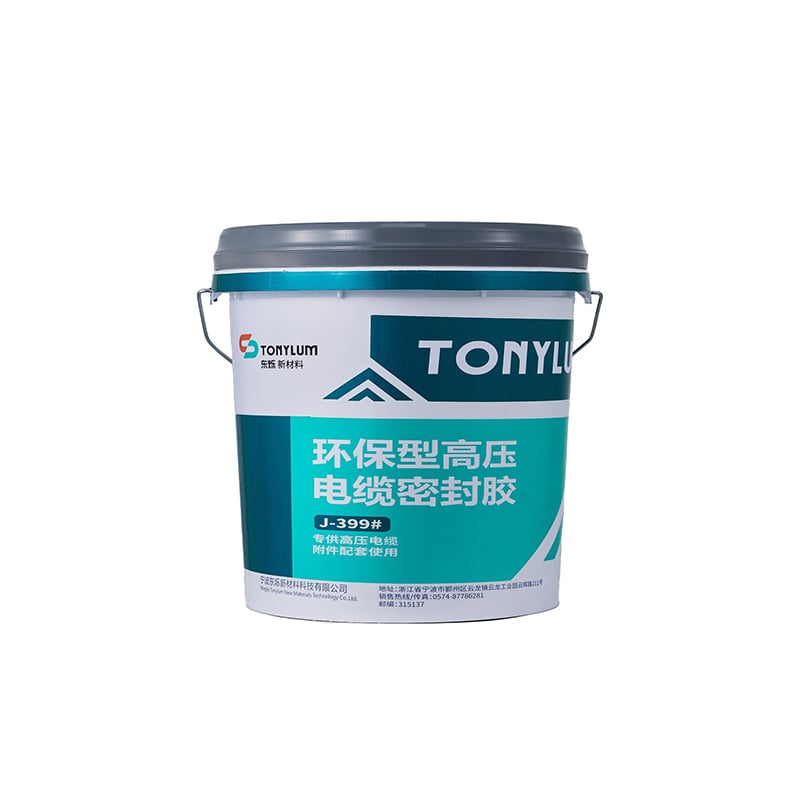

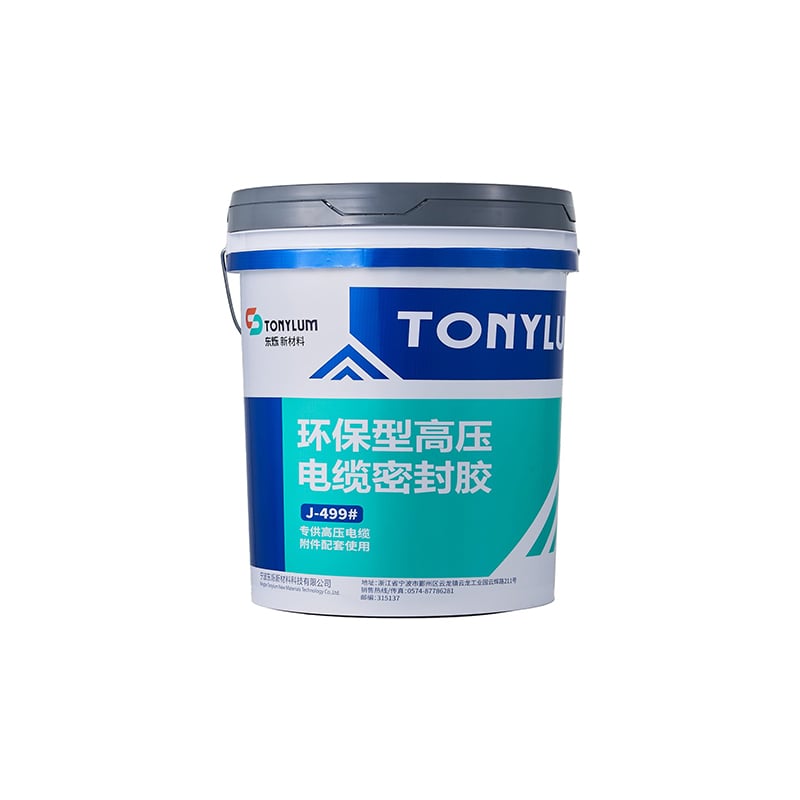

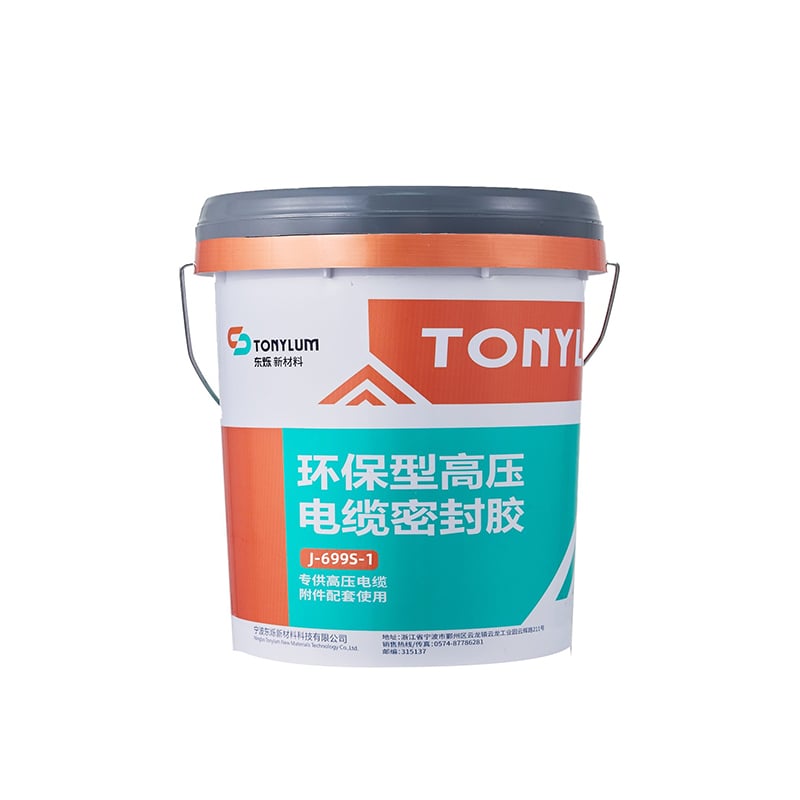

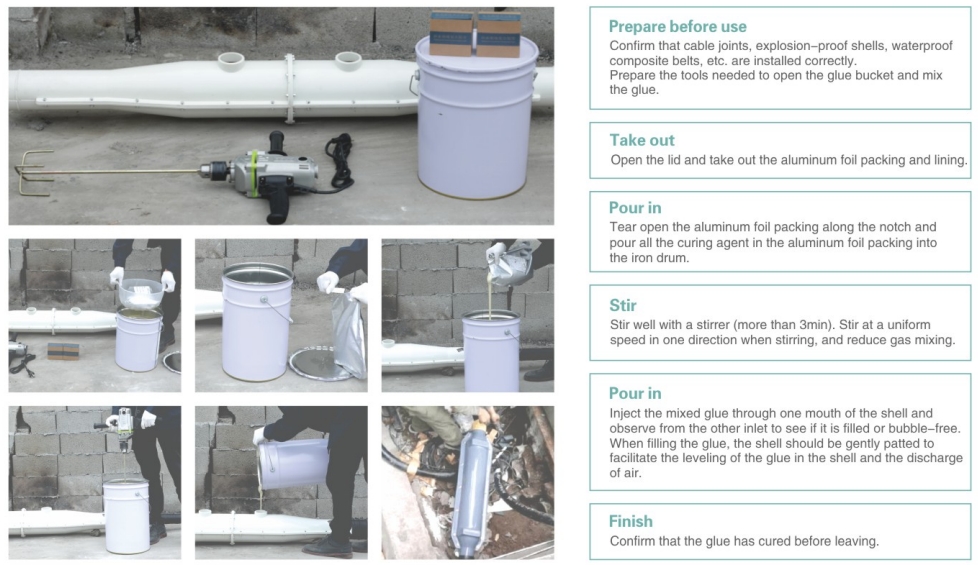

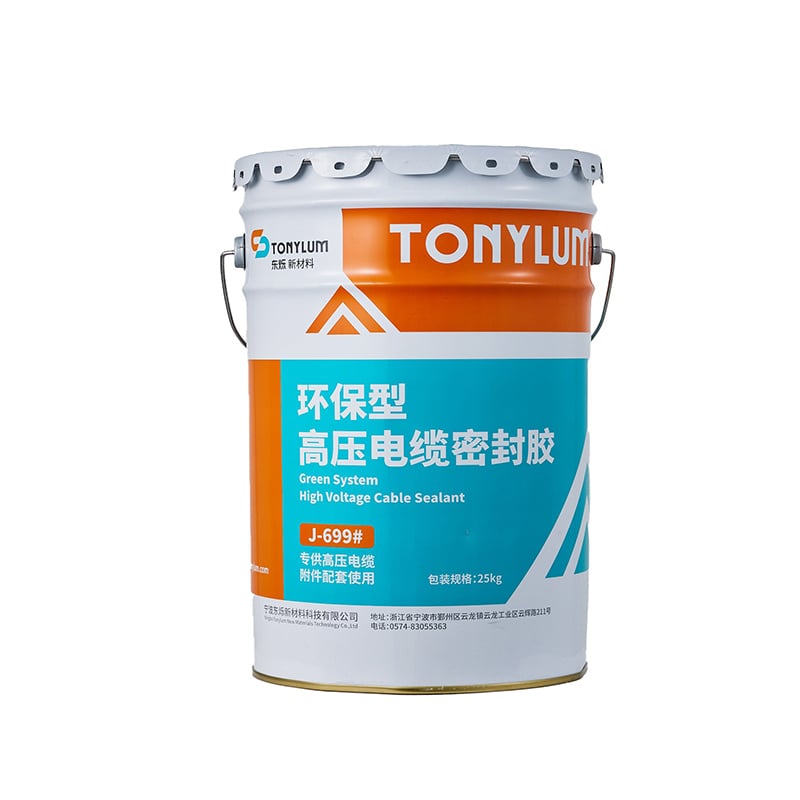

This product is a polyurethane two-component reactive sealant consisting of resin (A component) and curing agent (8 component). After thoroughly mixing the sealant (tan curing agent and resin) during use,inject it from the injection port into the housing cavity and wait for it to fuly cure.
The product does not contain solvents. It has the characteristics of minimal shrinkage, good permeation resistance, high volume resistivity, good insulation after curing. The product is constructed under room temperature and operated conveniently, it effectively combines waterproof property and insulation, and has become a special material for sealing, fireproofing and flame retardant of underground high-voltage cable joints.
| Model number | J-399 | J-499 | J-699 |
| Base material | Two-component polyurethane | ||
| Color | Resin | Curing agent | |
| Light yellow | Tan | ||
| Applicable voltage level | 10kV-35kV | 110kV-500kV | 110kV-500kV |
| Hardness | 55A±10 | 60A±10 | 60A±10 |
| Density | 1.55g/m³+0.55 | / | / |
| Gel time | 75'/23℃ | ||
| Volume resistivity rate | >1x 10"Ωcm | ||
| Breakdown strength | >15 kV/mm | ||
| Elongation at break | >50% | ||
| Tensile strength | / | ≥5 (N/mm²) | ≥5 (N/mm²) |
| Thermal conductivity rate | / | >0.2 W/M.K | >0.2 W/M.K |
| Storage temperature | +5℃~35℃ | / | / |
| Water absorption rate | <0.25 | / | / |
| Flame retardant rating | / | / | V0 |
