Introduction
Transformers are an integral part of energy distribution systems, used to transfer electrical energy from one circuit to another. One of the primary classifications of transformers is based on the type of insulation medium used. In this article, we will discuss the difference between liquid and dry type transformers.
What is a Liquid Type Transformer?
A liquid type transformer is filled with an insulating liquid, such as mineral oil or vegetable oil, which acts as a cooling and insulating medium. Liquid transformers are commonly used in high voltage applications due to their superior cooling ability.
What is a Dry Type Transformer?

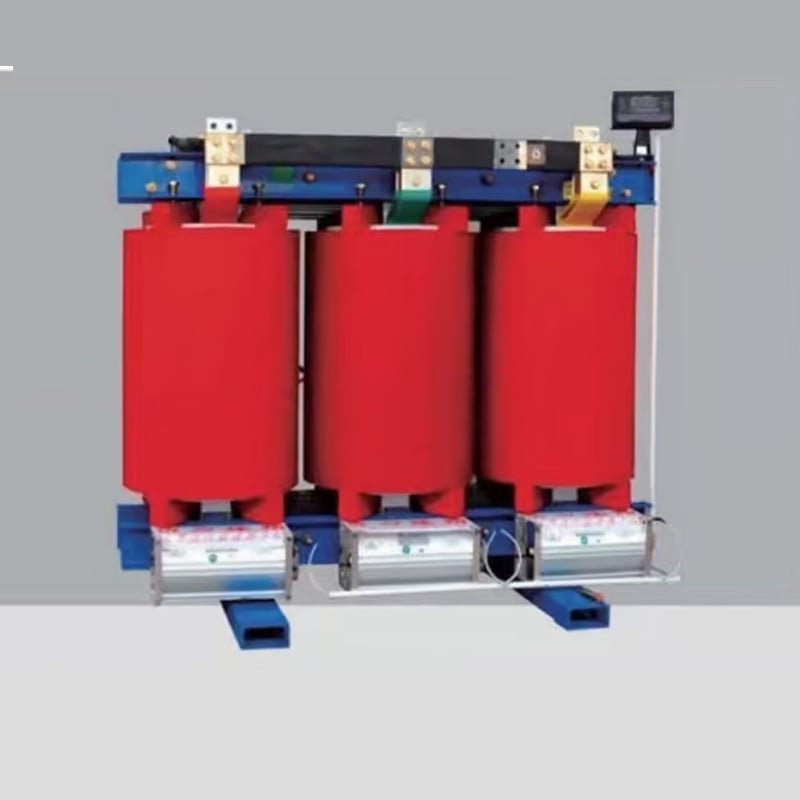

A dry type transformer, on the other hand, uses air as a cooling medium and does not require an insulating liquid. Instead, the transformer windings are coated with epoxy resin or varnish to provide insulation. Dry transformers are generally less expensive than liquid transformers and are commonly used in low voltage applications.
Comparison Based on Cost and Maintenance
As mentioned earlier, dry type transformers are generally less expensive than liquid type transformers. They also require lower maintenance, as there is no need to change or monitor the insulating liquid. However, dry transformers require larger cooling systems than liquid transformers because air is not as effective of a cooling medium as liquid.
Comparison Based on Environmental Impact
Liquid transformers pose a significant environmental risk if they leak or spill. The insulating liquid can contaminate soil and water sources, causing harm to the ecosystem. On the other hand, dry transformers are more environmentally friendly as they do not use any fluids.
Comparison Based on Efficiency
Liquid transformers are generally more efficient than dry transformers because the insulating liquid provides better cooling. This means that liquid transformers produce less heat and can carry more load without overheating. However, newer designs of dry transformers have closed this gap, making them nearly as efficient as liquid transformers.
Comparison Based on Size and Weight
Liquid transformers are generally smaller and lighter than dry transformers of similar rating because the insulating liquid provides better cooling. Dry transformers require larger and heavier cooling systems making them larger and heavier.
Comparison Based on Noise and Vibration Levels
Dry transformers are generally quieter and produce less vibration than liquid transformers. Liquid transformers produce more noise and vibration because of the cooling system and the transformer core.
Comparison Based on Fire Safety
Both types of transformers are susceptible to fires, but dry transformers are less prone to fire hazards than liquid transformers. In case of a fire, the insulating liquids used in a liquid transformer can act as fuel, causing a larger and more hazardous fire.
Conclusion
The choice between liquid and dry type transformers depends on the specific application and requirements. Liquid transformers are generally more efficient and smaller in size, but require more maintenance and pose significant environmental risks. Dry transformers, on the other hand, are environmentally friendly, require less maintenance, and are cost-effective, but are less efficient and require larger cooling systems.
